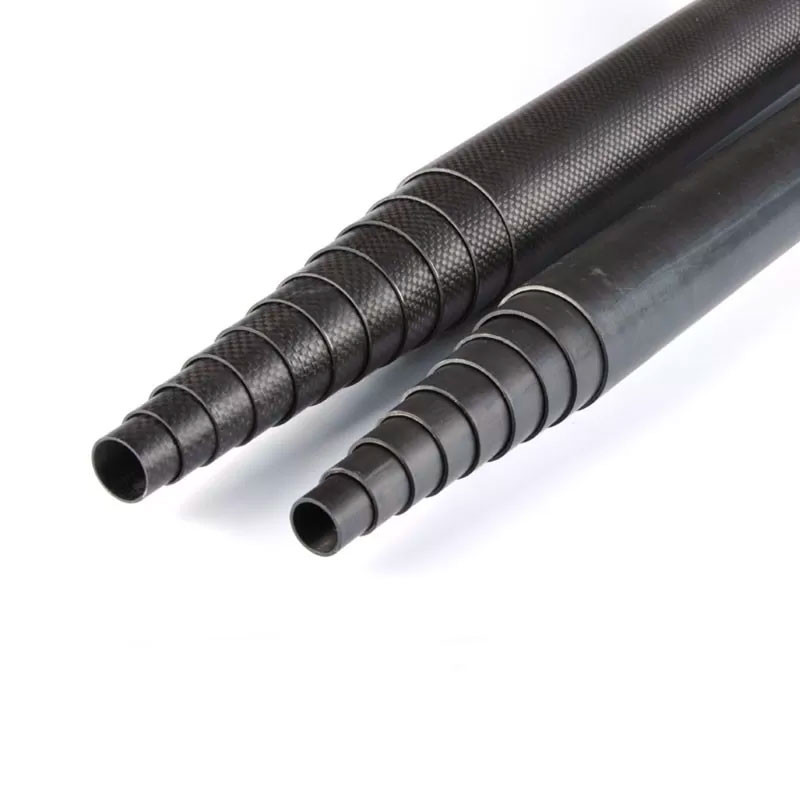

Strong and Lightweight 100% 3K Roll Wrapped Carbon Telescopic Tube
Carbon fiber telescoping tubes nest within one another and slide effortlessly. They are ideal for creating adjustable poles, robotics, factory automation, or any other application where compact storage and long extension length are necessary. Additional clamping force in the collet can be obtained by sanding the tube to remove the epoxy ridges.
One of the most established areas of our business is the design and manufacture of telescopic carbon fibre tubes.
For applications that require working at a distance, minimizing component weight is essential to improve maneuverability and ease of operation. At up to a 1/5th of the weight of steel, and many times stronger, composites are therefore ideally suited to this purpose.
Application
- Window cleaning
- Solar panel cleaning
- Swimming pool
- Camera pole
- Agriculture (Areca and coconut Harvesting)
- High ceiling & roof cleaning
- Tripods
Features
- High Strength
- Corrosion Resistance
- Light Weight
- Low Density
- Long Service Life
Strong and lightweight carbon fiber roll-wrapped telescopic tubes with quick-release clamps. A 12-meter-long carbon fiber poles are 2.4kgs in weight (poles and clamps included), and the poles could be closed up to a short length, which is usually shorter than 2.5 meters for easy transportation and storage.
We manufacture poles from 20 feet to 60 feet in length which is primarily used for cleaning and agro-industries like Areca & coconut harvesting. Each tube is 6 feet in length interconnected with an adjustable screw clamp.
The telescopic carbon fibre tubes are multiple-layered, unidirectional carbon fibre with an internally pull braided carbon fibre at 80° across the axis, and externally wound with a 37° double helix braid giving a smooth outer surface finish. This gives LIJIN’s telescopic pull wound carbon fibre tubes a high performance with exceptional mechanical properties resistant to bending and torsional forces.
Extension for pole composed of carbon fiber tubes with visible mesh, made entirely of high quality carbon fiber. It is real carbon fiber, pressed and cured in the oven. The joining of the tubes is done with aluminum clamps with conical tightening by rotation. Quick release and very light weight.
The diameter of this pole goes from major to minor and the sections can be stored inside each other, adapting it in each case to the desired length.
If you are looking for a light and extensible pole, this is the solution. You will not find a lighter and stronger option. You can use it with different accessories.
Specifications:
| Name | Cleaning Telescopic Pole |
| Material | High modulus carbon fiber, 100% carbon fiber, fiberglass, hybrid carbon fiber |
| Size | A standard size and customized |
| Closed Length | A standard size and customized |
| Extend Length | A standard size and customized |
| Top/ Bottom Dimension | As customized |
| Weave | With 3k twill/plain weave or just a black surface |
| Finish | Glossy, matte, smooth, or with threads (more wear-resistant) |
| Excellent Properties In | 1. Corrosion resistance 2. Super strength & lightweight 3. Good toughness 4. Factory direct sale |
Order Flow
- Tell us the size of carbon fiber products, including length, diameter, width, and thickness, etc. if you have specific requirements, Pls let me know. You should have a file/drawing(.dwg /.stp/.igs format ) to describe your request.
- We will analyze your request, supply you best solution then give you the best price.
- You received the price and arranged samples for us.
- We will prepare a sample for you, Normally it will take about 3~7 working days. Then we deliver the sample to you for the test.
- You received a sample and test okay. Then arrange formal order to us.
